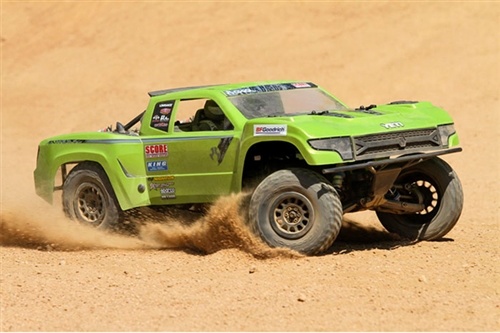

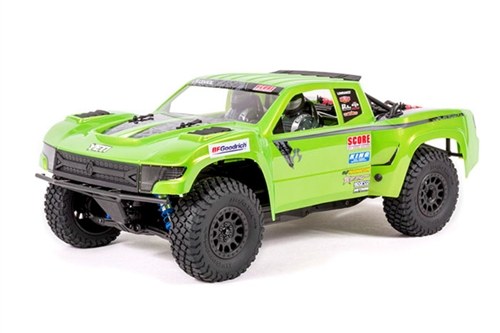

This is the Axial 1/10 Yeti Electric Ready-to-Run Trophy Truck with a 4-pole brushless power system and 2.4GHz radio.
The Yeti SCORE Trophy Truck RTR is THE ONE that Axial has been working towards for a long time! Weve always wanted to build a Trophy Truck, but we first had to build a successful platform. For authenticity, it had to be solid rear axle versus the commonly accepted independent suspension all the way around. Some would consider this going backwards. But Axial didnt just accept what the establishment said was the only way, we wanted true scale looks with the functionality to match. When we delivered the Yeti Rock Racer with its IFS front end and solid rear axle, we knew then we had the key ingredients to deliver the vehicle of our dreams - our very own solid rear axle trophy truck! And to top it off we went straight to Roger Norman, CEO/President of SCORE International, for his blessing and for official licensing.
SCORE International, the premier world championship desert racing association, was founded in 1973 by the legendary Mickey Thompson. This race organization is home to the world famous Baja 1000 and Baja 500 events. If you live in Southern California, chances are you have seen the iconic red, white and blue SCORE decals adorning off road vehicles all over the place. This desert racing series was the early inspiration for short course racing events, as organizers tried to bring desert racing to the masses in confined spaces. Thats right, short course off road racing was born in the desert. In true Axial style, we brought you a new R/C vehicle replicating desert racings top level competition vehicles, the SCORE Trophy Truck.
Axial didnt stop there. We partnered with the top companies actively developing their products through desert racing to take authenticity to the next level. The Axial SCORE Trophy Truck is suspended by a set of aluminum King Shocks rocking the iconic blue shock caps, rod ends, ride height adjusters and springs. King Shocks is a company who has all but dominated the sport through the years providing the latest technology known to man to conquer the harsh terrain of Baja.
Axial also partnered with BFGoodrich to bring you accurate replicas of the latest spec desert racing tire, the Baja T/A KR2. This tire has already produced wins at both the Baja 1000 and the grueling King of the Hammers events. A set of five functional BFGoodrich tires mounted to the extremely strong 105 Method Race wheels provide the connection to dirt. The fifth wheel and tire being a functional spare accessed quickly from the rear of the Trophy Truck cage.
3150KV BRUSHLESS MOTOR, WATER RESISTANT
The included 3150KV 4-pole brushless motor provides the perfect amount of torque and speed for this Baja conquering beast. The long can design provides a massive amount of power, especially when powered by 3S. Whether ripping through the fields or negotiating technical terrain, this power plant has you covered.
ADJUSTABLE ALUMINUM SHOCKS
The included aluminum King Shocks feature precision machined pistons which offer smooth performance throughout the range of travel. Made to tight tolerances, these aluminum shocks feature clear coated polished aluminum bodies and are threaded for quick ride height adjustments and pre-load tuning ability.
2.2/3.0 BFGOODRICH BAJA T/A KR2 TIRES (SB40 COMPOUND)
In the full-size off-road world of Trophy Truck racing, BFGoodrich Baja T/A KR2 tires are the obligatory go-to tire and responsible for winning numerous Baja championships, including the 2014 SCORE Baja 500 and 1000. The Axial version of this tire captures the same aggressive look and provides awesome performance on a wide variety of surfaces. This is the perfect tire for this style of vehicle due to its high level of performance and diversity
AR60 OCP-AXLE, SOLID REAR AXLE, 4-LINKED
The AR60 OCP-Axle is constructed from high strength composite material which has a low flex rate but is not as brittle as standard glass filled nylon. The combination of our axles and a true 4-link suspension gives you optimal performance for any terrain with the look of a real 1:1 vehicle.
2.2/3.0 METHOD 105 REPLICA WHEELS
Based off the popular Method 105 machined wheels, these officially licensed wheels are dressed in an aggressive all black style and compatible with most 2.2/3.0 short course tires. The hub design allows this wheel to mount to any YETI, Wraith, AX10 or SCX10
INDEPENDENT FRONT SUSPENSION
The Yeti Trophy Truck is equipped with an Independent Front Suspension [IFS] system to help maintain high-speed stability when running through a diverse range of terrain. The IFS system allows you to better control the intended direction of travel at high speeds when one side is adjusting to overcome road obstructions. This stability that the IFS front end provides is paramount when blasting through the desert. Backing up the front suspension is the AR60 rear axle with a true 4-link design that cycles nearly 3 of wheel travel.
WB8 HD WILDBOAR REAR DRIVESHAFT
The Yeti features the proven AR60 rear axle with a completely new 4-linked rear suspension. The Yeti chassis offers 3 upper link positions to adjust the anti-squat. The lower link mounts can be flipped to change the roll center. These advanced tuning options will help you get the most performance from your rig. The WB8 HD rear driveshaft features an updated design with a larger diameter cross pin (2x11mm) along with an M4 Screw Shaft (2mm hex drive) for added strength. A center splined slider floats between each end and features added material which reduces flex and fatigue.
LONG TRAVEL REAR SWAY BAR
The pursuit of horsepower and the ability to put the power to the ground is one of the main aspects of offroad racing. This unique torsion bar design with long pivot arms used in conjunction with the long travel suspension is designed to help control the torque twist associated with massive power. This system also helps reduce body roll and adds stability at high speeds. The rear sway bar is standard equipment, offering a tremendous amount of high speed stability. Because our customers are known for modifying their vehicles provisions were made to offer three more mounting positions for custom builds with different wheelbases. Axial will have several different sway bar options available in the future to adjust firmness.
HI-LO TRANSMISSION
The Axial Hi-Lo transmission was specifically designed for the Yeti chassis. With all metal internal gears, this full ball bearing transmission has the strength to endure the harshest rock racing environment and brushless power. The factory gearbox comes as a single speed with the high gear installed for high speed fun. The integrated motor mount features a wide range of movement for endless gearing options.
NOTE: optional two-speed transmission component sold separately (AX31181).
PROTECTIVE TRANSMISSION COVER
Helps keep dirt and debris out of your pinion and spur gear for a quiet and efficient drivetrain, and it also prevents any loose wires from getting chewed up!
DUAL SLIPPER CLUTCH
Our dual slipper design uses a pad on each side of the spur gear for added surface area. This allows for more precise tuning and holding power. The spur gear features strong, 32 pitch gearing for high torque applications.
WB8 HD CENTER CVD JOINT - FRONT
The WB8 HD Wildboar Driveshaft Joint is employed from the transmission to the front bulkhead. It features an updated design with a larger diameter cross pin (2x11mm) along with an M4 Screw Shaft (2mm hex drive) for added strength.
EASY ACCESS BATTERY TRAY
The integrated battery tray can be easily accessed by removing the two front body pins and pivoting up the entire body. Gain full access to the battery trap door by removing the remaining body pin. The battery tray is fully height adjustable with four button head screws, making room for most standard sized 2s and 3s LiPo battery packs.
RECEIVER BOX, WATERPROOF
The new waterproof receiver box is integrated into the bottom of the Yeti chassis. Three different silicone seals are included, one for the antenna, one for the servo wires (includes three slots for three channels), and one acts as a gasket for the receiver box cover. No more stress when running in mud, water, or snow!

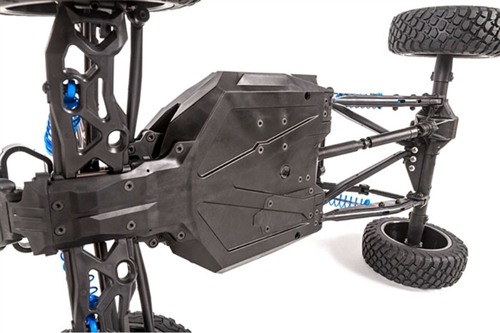

MAIN CHASSIS
TACTIC TTX300 3-CHANNEL SLT RADIO
Sport-level racers and bashers will appreciate the TTX300's many popular features, along with its amazing adjustability. It features a programmable 3rd channel making for incredible versatility; it can operate functions such as two-speed shifting, winches and lights, making it ideal for a vast array of opportunities. Need more reasons? There's SLT (Secure Link Technology), which creates an unbreakable link between the receiver and your transmitter with push-button ease.
TACTIC 3-CHANNEL 2.4GHz RECEIVER
The Tactic TR325 2.4GHz receiver uses no crystals and features an internal antenna, so you'll experience worry free driving without frequency conflicts or antenna damage. This lightweight, compact, and bind button equipped receiver with LED indicator makes setup easy!
METAL GEAR TACTIC SERVO, 151 oz-in, WATER RESISTANT
The included Tactic TSX45 metal gear servo is rated at 151 oz-in of torque for massive turning power and dual ball bearings provide smooth and precise movement for the metal gear train.
VANGUARD ESC, 3S LIPO, WATERPROOF
Developed by Castle Creation for Axial, the Vanguard ESC provides exceptional power, braking and adjustability. The ESC comes standard with Deans Ultra Plugs. The ESC can be programmed manually via Castle Field Programming Card or through the Castle Link software interface (optional).
DUAL SHEAR STEERING RACK
The Yeti features an updated EXO steering rack that offers additional strength for 2.2 size tires, and double shear capture points on the steering tie rods for ready-to-go desert racing action!

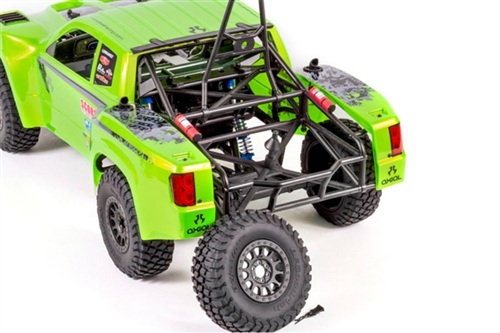

SPARE TIRE MOUNT
Part of the rear cage is the spare tire and mount with a swing up restraint - pull one pin for easy access to the tire. The spare tire and wheel are fully functional.
REALISTIC SCALE DETAILS
Realistic scale details include: polycarbonate interior tray with molded driver figures and dashboard, three pairs of black styrene helmets (Sparco, Moto-X, Skully), molded exhaust outlets, molded grill, and molded hood vents. We've also included molded plastic light buckets at all 4 corners. Simply add our LED lights and controller for a street legal pre-runner.
Length: 23" (583mm)
Width:12" (305mm)
Height:8.3" (210mm)
Wheelbase:14.2" (360mm)
Ground Clearance:1.7" (43mm)
Weight:6.65lbs (3kg)
Motor: Brushless 3150KV 4 Pole Electric Motor
2S or 3S LiPo battery with Deans connector
Battery Charger
Track and maintenance equipment
