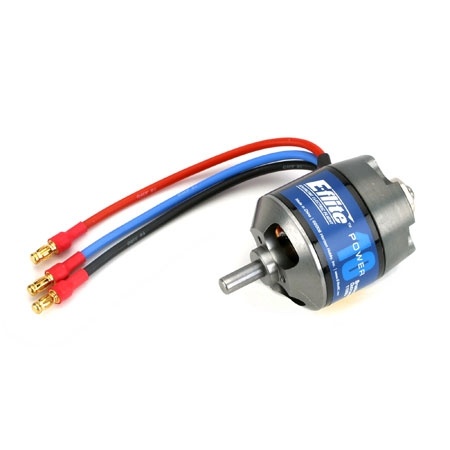

E-Flite Power 10 Brushless Outrunner Motor, 1100Kv

  • E-Flite Power 10 Brushless Outrunner Motor, 1100Kv
$6899
This item earns 69 Reward Points!
Brand:
Model: EFLM4010A

This is the E-Flite Power 10 Brushless Outrunner Motor, 1100Kv.  The Power 10 is designed to deliver clean and quiet power for 10-size sport and scale airplanes weighing 32 to 48 ounces (910 to 1360 grams), 3D airplanes weighing 28 to 36 ounces (790 to 1020 grams), or models requiring up to 375 watts of power.  It’s an especially good match for the E-flite Brio 10 for high speed F3A precision or artistic aerobatics.

Features

  • Equivalent to a 10-size glow engine for 32-48 ounce (910-1360 g) airplanes
  • Ideal for 3D airplanes weighing 28-36 ounces (790-1020 g)
  • Ideal for models requiring up to 450 watts of power
  • High-torque, direct-drive alternative to inrunner brushless motors
  • Includes mount, prop adapters and mounting hardware
  • External rotor design-5mm shaft can easily be reversed for alternative motor installations
  • Slotted 14-pole outrunner design
  • High-quality construction with ball bearings and hardened steel shaft
  • Quiet, lightweight operation

You will need
40A ESC
6- to 10-cell Ni-MH/Ni-Cd or 2–3S Li-Po
10x5 to 12x6 electric props

Specifications
Type: Brushless outrunner motor
Size: 10-size
Bearings or Bushings: One 5 x 14 x 5mm Bearing, and One 5 x 11 x 5mm Bearing
Wire Gauge: 16
Recommended Prop Range: 10x5-12x6
Voltage: 7.2-12
RPM/Volt (Kv): 1100
Resistance (Ri): .043 ohms
Idle Current (Io): 2.10A @10V
Continuous Current: 32A
Maximum Burst Current: 42A (15 sec)
Cells: 6-10 Ni-MH/Ni-Cd or 2-3S Li-Po
Speed Control: 35-40A brushless
Weight: 122 g (4.3 oz)
Overall Diameter: 35mm (1.40 in)
Shaft Diameter: 5mm (.20 in)
Overall Length: 43mm (1.60 in)

Tech Notes
* Maximum Operating Temperature: 220 degrees Fahrenheit
* Adequate cooling is required for all motor operation at maximum current levels.
* Maximum Burst Current duration is 15 seconds. Adequate time between maximum burst intervals is required for proper cooling and to avoid overheating the motor.
* Maximum Burst Current rating is for 3D and limited motor run flights. Lack of proper throttle management may result in damage to the motor since excessive use of burst current may overheat the motor.
