Fat Shark Dominator V2 FCC-Certified FPV Headset Bundle (#1061)

  • Fat Shark Dominator V2 FCC-Certified FPV Headset Bundle (#1061)
$39999
This item earns 400 Reward Points!
Brand:
Model: FSV2400

Fat Shark 1061 Dominator V2 FCC-Certified FPV Headset Bundle

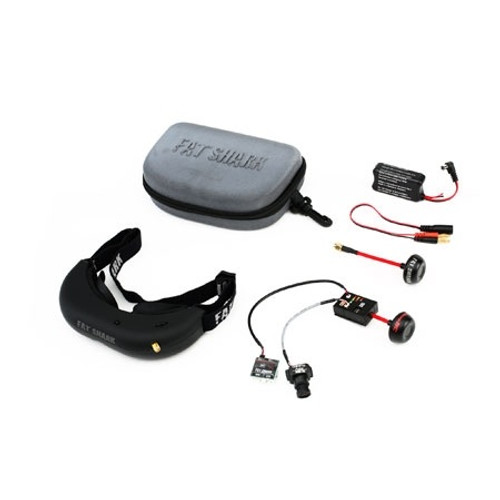

This is the Fat Shark 1061 Dominator V2 FCC-Certified FPV Headset Bundle with LiPo battery pack, banana plug charging cable, carrying case, and cleaning cloth. The Fat Shark Dominator V2 modular bundle is ideal for the FPV customer who is familiar with the FPV experience and wants a headset system with the quality and versatility that allows for growth and upgrades. Forwardly compatible, this bundle has a built-in DVR (with micro-SD storage) and integrated HDMI connection already installed.

Features

  • Optics display of 35-degree FOV (field of view)
  • Resolution of 640 x 460
  • Adjustable Inter Pupillary Distance (IPD) adjustment (57 to 73mm) and diopter option (for farsighted users)
  • Soft rubber eye cups to block out ambient light
  • Adjustable brightness and contrast
  • Standard ports: headphone, video in/out
  • Elastic headstrap w/battery holster
  • SMA antenna connector
  • Li-Po compatible

User Controls:
Channel selection
Volume control
Mode selection (wired/wireless)
Contrast/ brightness control
2D/3D side/side analog/ 2D/3D side/side digital (HD only)
DVR control
HT control

Electrical:
Power supply: 7 - 13 V (2S/3S supply)
Power consumption (@7.4V nominal):
350mA wireless mode
200mA direct mode (no RX)

Mechanical:
Ergonomic molded headset w/ adjustable headband
Secured rubber eye cups for ambient light reduction

Display
Full color Kopin CyberDisplay
HD: 800 X 600 SVGA
V2: 600 X 480 VGA
NTCS/PAL auto selecting

Head Tracker
Modular (sold separately)

DVR:
MicroSD support to 32Gb
Record rate: 6Mbps
MJPG compression, 30 fps, AVI
File playback (no codec support other than native recording)
Upgradeable via SD card

Interface
3.5mm AV in/out port
Power in port
3.5mm 3p earphone port
MiniDIN4 data port (head tracking)
MicroSD
MiniHDMI
RF module port

This headset accepts an optional diopter insert to accommodate those who wear glasses. The Headset Diopter Insert Kit (sold separately) includes one pair each of Diopter inserts rated -2, -4, and -6 dpt.

Included Items:

Dominator V2 VGA Headset (also includes carrying case/lens cloth).
Headset Battery Pack
Banana plug charge cable



Requires

5G8 Dominator receiver module (and IRL2301/2302 5.8GHz antennas)
FCC certified video transmitter
CMOS 600TVL fixed camera
Trinity 3-axis Head Tracker Module for Dominator
EzOSD On Screen Display System with GPS
Pan/Tilt/Roll Camera Mount
