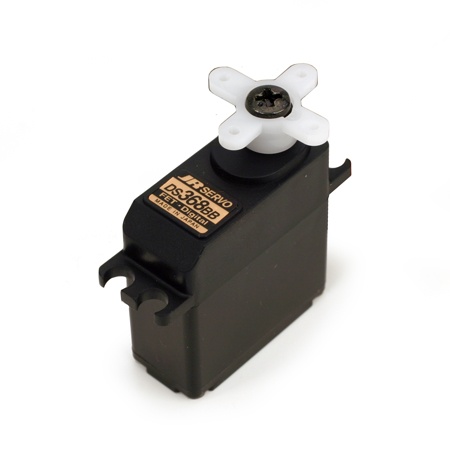

This is the JR DS368BB Micro Digital servo. JR's smaller sized Digital Ultra Torque DS368 Ball-Bearing Micro servo offers outstanding holding torque and quicker response. This is achieved by using a high-frequency digital amplifier with a pulse rate of 300Hz (the number of time the amplifier pulses the motor per second) versus the 50Hz found on a conventional servo. The extreme accuracy of digital precision gives a resolution of 5900 steps per 120° of travel and less than .001ms of dead-band. A durable composite-metal geartrain composed of hard-anodized aluminum and hardened steel and brass gears provides backlash- free operation.
Imagine locating servos where no servo has gone before. Due to their compact size, these small digital ultra-torque servos are perfect in applications that require servos driven by space restrictions, such as those found in a jet, sailplane, pylon racers, or a complex scale model. Eliminate long, accuracy robbing link-ages by locating servos closer to the point of operation.
If you need to trim weight, you can lighten a model by choosing a smaller digital ultra-torque servo without the worry of losing torque normally associated with a larger standard servo. In fact, the DS368BB Micro servos have more torque than most conventional standard servos and weigh considerably less. These servos are truly in a class of their own.
Features:
Specifications:
Size Category: Minis and Micros
Type: Digital
Torque: 53 oz/in @ 4.8V, 60 oz/in @ 6V
Speed: .21 sec/60° @ 4.8V, .18 sec/60° @6V
Dimensions (WxLxH): .50 x 1.12 x 1.21
Weight: .83oz
Bushing Or Bearing: Bearing
Bearing: Single
Motor Type: Cored
Gear Type: Metal
Application: Great for sailplane wing installation
