Spektrum AR631+ 6 Channel AS3X+ & SAFE Receiver

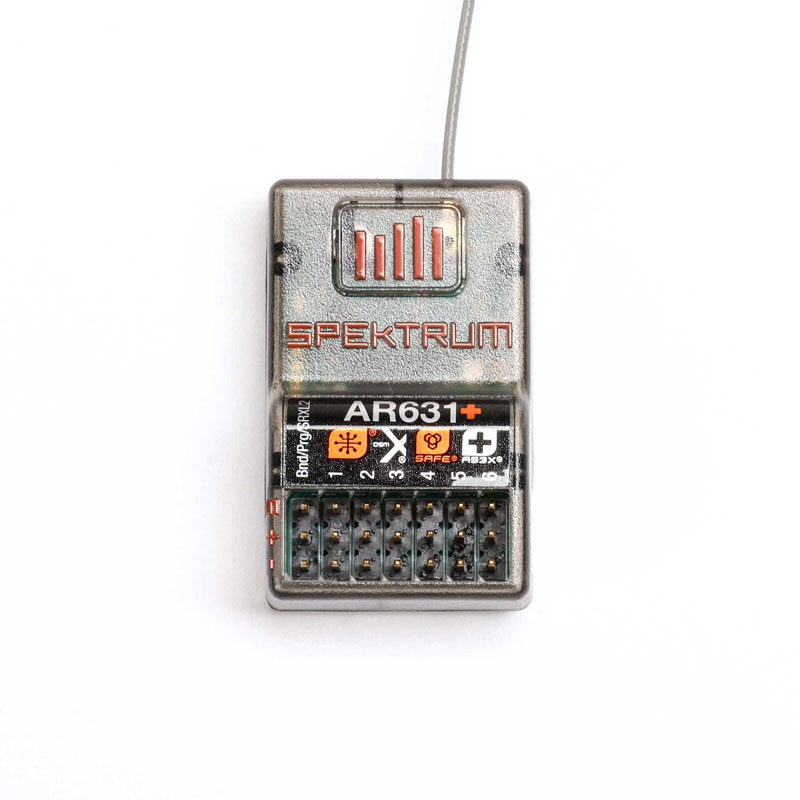

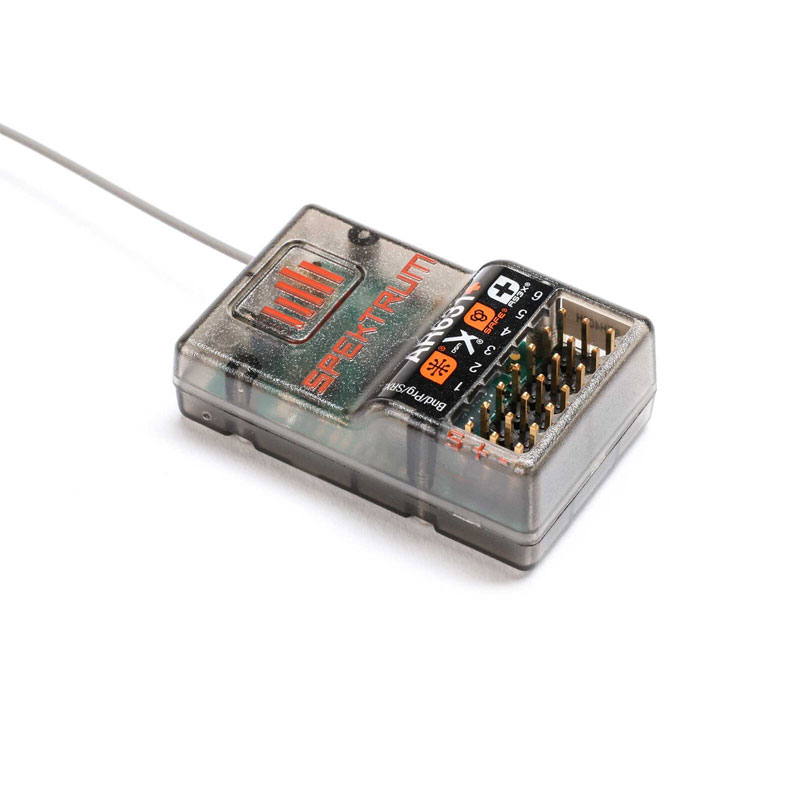

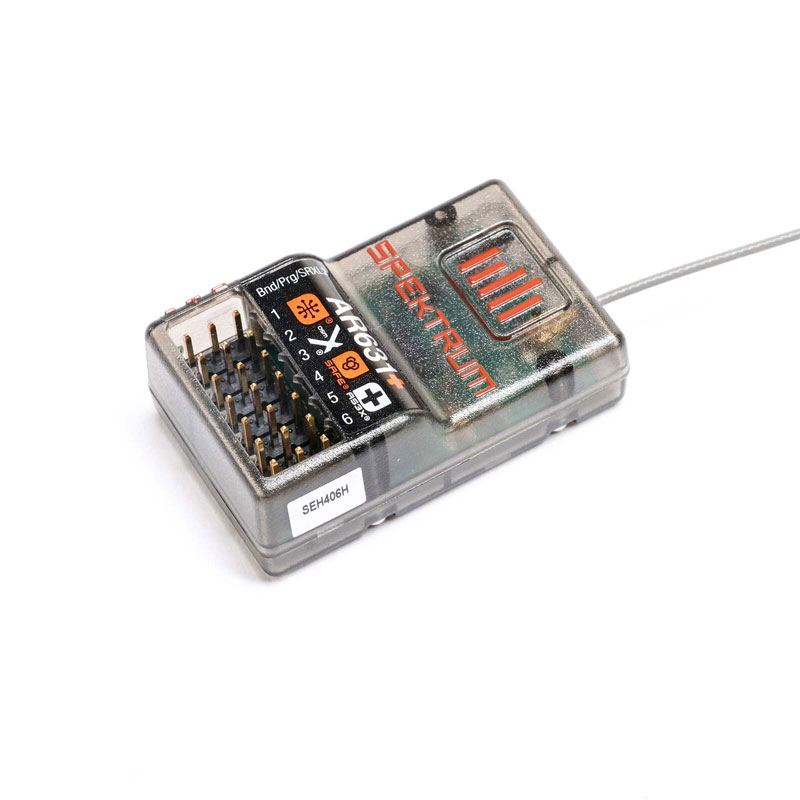

This is the Spektrum AR631+ 6 Channel AS3X+ & SAFE Receiver

AR631+ 6 Channel AS3X+ & SAFE Receiver
The AR631+ features fly-by range telemetry and a bind button that makes it easy to bind with no plugs necessary and offers both SmartSafe technology and Hold Last as well as preset failsafe types set through forward programming. A long 230mm 2.4gHz antenna, perfect for getting optimal reception when installed into tight spaces. The AR631+ also features Smart Telemetry support.

With Smart Technology the normal servo connector delivers the throttle signal to the ESC, plus the ESC can send telemetry data like voltage and current back to the receiver. The AR631+ receiver throttle port (Channel 1 port only) will automatically detect when a Smart compatible ESC is connected. ESCs with Smart and IC series connectors can also pass along battery data from compatible Spektrum Smart batteries. Spektrum Avian ESCs are compatible with the AR631+ receiver for Smart Technology features.

For Smart to function you must have a Smart ESC paired with a Smart telemetry receiver, and a Spektrum DSMX transmitter with telemetry. An update for your transmitter may be required for Smart features. Visit spektrum.com to register and update your transmitter. If a standard ESC or servo is plugged into the throttle port on the AR631+ receiver, the throttle port will operate normally (PWM signal) like any conventional RC system.

Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters

*Using this receiver in turbine powered aircraft models is not recommended.

Features

• Smart Transmitter File Download
• 230mm Antenna for more versatile installation options
• Built in AS3X+ Stabilization System with SAFE flight envelope protection
• AS3X+ and SAFE set up through forward programming directly from your Spektrum transmitter
• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
• Streamlined, top-pin design in a lightweight hard-case
• Bind button allows for easy binding and eliminates the need for bind plug
• DSMX protocol receiver with DSM2 backwards compatibility
• Fly-by range telemetry support
• Standard servo connectors

AS3X+
NEXT GENERATION IN FLIGHT STABILIZATION
The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than five minutes including the first flight tuning.

Key AS3X+ improvements include:

• Stop Lock and Release Rate parameters
• Heading Hold improvements
• Improved gryo filtering
• Canard and Thrust Vectoring support

SAFE Technology
SAFE (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X+ to deliver normal flight performance, but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.

Long 230mm 2.4GHz Antenna
The AR631+ features an extra-long 230mm 2.4ghz antenna (approximately 9 inches), specifically engineered for use in tight installations. When installing your receiver into an aircraft where there is less then ideal space away from batteries and other devices, a long antenna is key. This allows users to install the receiver in tight spaces and isolate the antenna for optimal reception and link quality. When positioning your antenna, it is best to have it at least 75mm ( approximately 3 inches) away from batteries, electronic speed controls (ESC), ignition systems, and other electronic devices. Use the integrated flight log telemetry to perform a through range test to better evaluate your setup.

Forward Programming
You can configure the AR631+ receiver wirelessly, directly from any compatible Spektrum transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

Smart Transmitter Model Files Support
Smart Transmitter Model Files is a new feature on the AR631+ receiver that makes transmitter programming the easiest has ever been. It consists of a set of transmitter configuration parameters that are stored within the receiver's model file. When binding to a receiver containing one of these model files, the user will be prompted to download said model file and overwrite the currently selected transmitter model with the one stored on the receiver. This will provide the user with an easy and simple way to acquire a transmitter model setup for their BNF model without the need to set it up themselves or search for and download the corresponding model online.

Smart Telemetry
To enjoy the full benefits of Smart technology, use the AR631+ receiver with a Smart ESC and telemetry capable Spektrum DSMX transmitter. The AR631+ features fly-by telemetry and will provide vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter. The AR631+ is not compatible with Spektrum telemetry sensors. For more information on Smart Technology please visit our Spektrum Smart Technology page.

Includes
(1) AR631+ 6-Channel AS3X+ & SAFE Receiver
(1) Product Manual

Specifications
Antenna Length: 9" (229 mm)
Application: Airplane, Sailplane
Band: 2.4GHz
Bind Method: Bind Button
Channels: 6
Data Port: Yes
Flight Log Compatible: Yes
Forward Programming: Yes
Input Voltage: 3.5 - 9V
Integrated Variometer: No
Modulation: DSMX
Product Application: Air, Sailplanes
Product Height: 0.55" (14 mm)
Product Length: 1.53" (39 mm)
Product Weight: 0.28oz (8g)
Product Width: 0.94" (24 mm)
Range: Full
Remote Receiver Ports: 0
Resolution: 2048
Serial Out: SRXL2
Technology: AS3X+, SAFE
Telemetry: Yes
Telemetry Range: Fly-By

Requires
(1) Spektrum Telemetry Capable Transmitter
