Spektrum Smart S120 USB-C 1x20W Charger

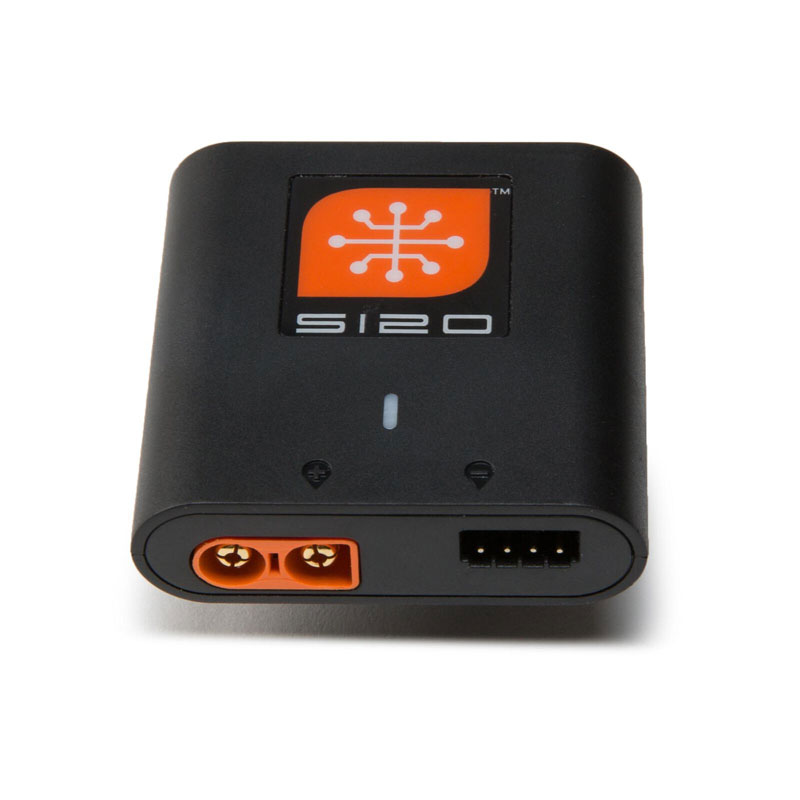

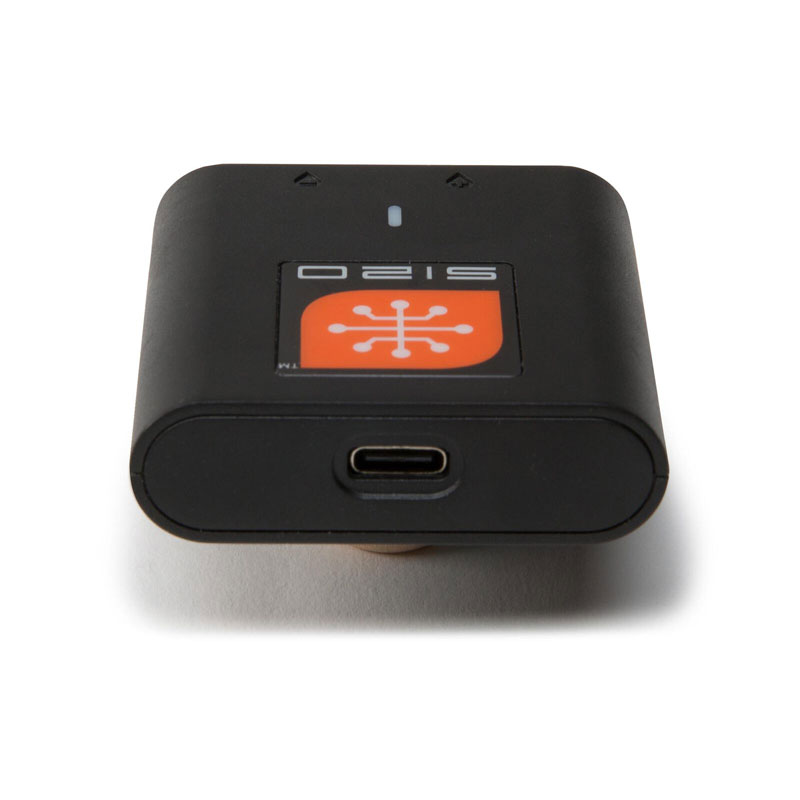

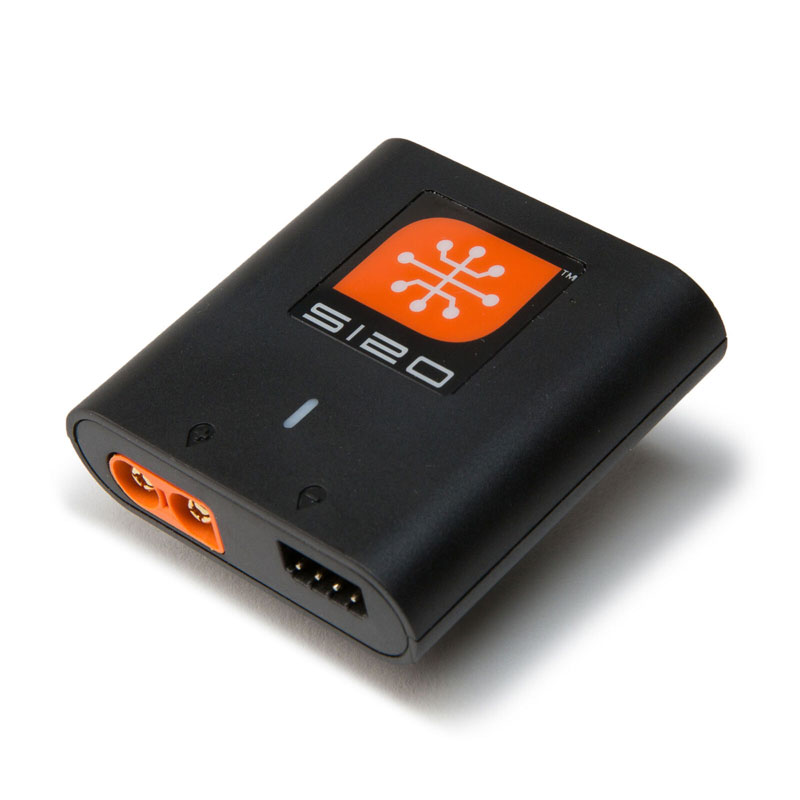

This is the Spektrum Smart S120 USB-C 1x20W Charger

S120 USB-C Smart Charger
The Spektrum S120 USB-C Smart Charger features Spektrum Smart Charging technology in a small and simple to use platform. This 20W charger easily charges compatible Spektrum Smart batteries conveniently from almost any USB power source. When a Spektrum Smart battery is connected, the S120 immediately detects the battery information and automatically begins to charge. Spektrum Smart charging is designed to be safe, intuitive and convenient so you can simply look forward to putting your batteries back to action!

Charging is easy with the Spektrum S120 USB-C Smart Charger. Simply use the included USB cable to supply power to the S120 Smart Charger from a USB power source (not included). Plug in your Spektrum Smart battery (Lipo versions require the balance lead to be connected as well as the main lead) and the charger will automatically start charging. Monitor your charging status via a blinking purple or yellow LED. Once your charging is complete the LED will glow green.

*Please note that the Spektrum S120 Charger will ONLY CHARGE 2-3 cell SPEKTRUM SMART LiPo/LiFe/LiHV and 6-7 cell SMART NiMh Batteries*

Features

• Easily charge compatible smart batteries from convenient USB power (power supply not included)
• Automatically detects smart battery information and begins charging when connected
• Compatible with 2-3 cell Smart LiPo Batteries
• Uses the Popular IC3 Connector and Balance Port
• 2-3 Cell (LiPo), 6-7 Cell (NiMH) Smart Battery Compatible

Includes
(1) S120 USB-C Smart Charger
(1) USB-C to USB Cable
(1) Product Manual

Specifications
LiPo Compatibility: 2S, 3S
Input Voltage: 5-12VDC USB charge port, USB type C cable included, power supply required
Part Type: Electronics
Power (watts): 20 - 49W
Product Height: 0.55" (14mm)
Maximum Charge Rate: 1 to 2 Amps
Product Length: 2" (51mm)
Reverse Polarity Protection: Yes
Thermal Protection: Yes
Product Width: 2" (51mm)
Software Updates: Yes
Technology: Smart
Battery Balance Connector: JST_XH
Charge Protection Circuitry: Yes
Number of Cells: 2-3 cell (LiPo), 6-7 cell (NiMH)
Number of Output Ports: 1
Power Source: USB
Selectable Charge Rate: No
Battery Type: Smart Only, LiPo (3.7V per cell), Smart NiMH (1.2V per cell)
Programmable: No
Application: Only compatible with Spektrum SMART batteries
Output: Up to 2A (depending on Power Supply and Battery)
Output Connector: IC3
USB Power out: No

Requires
(1) USB Power Source
