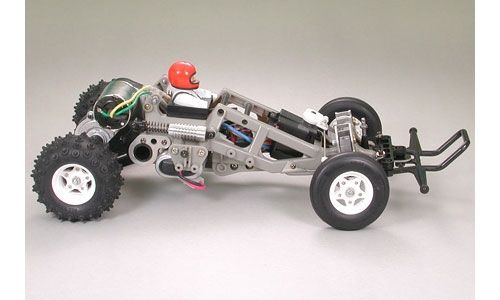

This is the Tamiya 1/10 Frog 2WD High-Performance Electric Radio Controlled Off-Road Buggy Racer Kit. Relive the good old days of 32 pitch gears, 3-piece wheels and kits you build yourself with the Tamiya 1/10 Scale Frog 2WD Off Road Racer!
When Tamiya first introduced the Frog in 1983, the 2WD racing buggy made a huge splash with its eye-catching design and high performance running. The Frog now makes a comeback, updated for a new age, but with its basic structure essentially unchanged. Preserving its characteristic space frame, the oil dampers for trailing-arm type rear suspension have been updated to diaphragm type. The rear drive shaft features a dogbone type joint for secure power transmission. Its sleek polycarbonate body remains the same, while 3-piece wheels feature front grooved and rear spike tires for excellent off-road running.

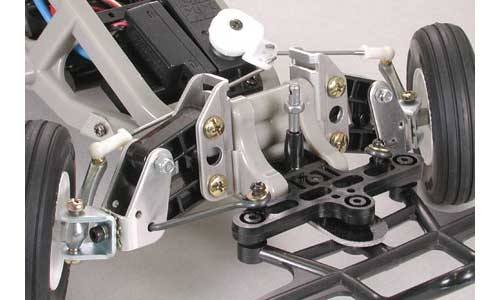

This electric R/C racing buggy features ABS space frame and nylon suspension and bumper for a lightweight yet rugged form that is perfect for off road running. The battery is held in an ultra-low position, giving this car the stability and weight balance to handle rough terrain and wild jumps. An advanced 4-wheel independent suspension is composed of front double wishbone type featuring in-board spring and durable steel radius arm. The rear trailing arm type features horizontally mounted aluminum cylinder oil dampers for effective shock absorption. A sealed differential gearbox ensures high speed cornering, while full gearbox ball bearings and 3-step gear ratio secures maximum transmission efficiency.
Features:
- Includes TEU-101BK ESC (Electronic Speed Control)
- Includes re-designed side aluminum dampers inspired by TRF shock design.
- Includes re-designed dog-bone style drive train with original rubber boots.
- Reintroducing the original 2WD buggy masterpiece featuring ABS resin space frame, horizontally mounted oil dampers, inboard spring type front suspension.
- Powered by a Type 540 motor.
- Kit includes straight ribbed racing front tires and high-grip rear spiked tires.
- Wheels are realistic 3-piece type.
- Includes diff gear.
Includes: Tamiya Frog Buggy w/two horizontal mounted friction type rear shocks, 540 size motor, body, tires, wheels, front bumper, 16, 18, and 19 tooth pinion gears, 49, 50, and 52 tooth spur gears, TEU-101BK forward/reverse ESC, decals and building instructions
Specifications:
CHASSIS-
Length: 16.1" (410mm)
Width: 9.4" (240mm) at rear wheels, widest point
Height: 5.7" (145mm)
Weight: 2.2lbs (1020g)
Wheelbase: 9.8" (250mm)
Tread: Front and Rear 7.3" (185mm) wheels on-center side-to-side
Track: Front and Rear 8" (203mm)
Tires, Front 2.9" (73mm) diameter .79" (20mm)
Rear 3.4" (86mm) diameter 1.6" (42mm) wide
BODY-
Length: 12" (304mm)
Width: 2" (51mm) at front wheels, narrowest point
Width: 3.8" (98mm) behind rear wheels, widest point
Height: 2.4" (61mm)
Requires:
Radio: 2-channel radio with one standard servo
Battery: 6 flat pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Tools & Paint
